VP125

Award Winning Design
Swing Out Electrical Enclosure

VP125

Award Winning Design
Swing Out Electrical Enclosure

VP125 Technical Information

Package Draw Depth: Maximum 4.5”

Standard Web Width: 340mm (13.4”) to 720 (28.4”)

Standard Index: 230mm (9”) to 584mm (23”)

Cycle rates up to 14/minute


Utilities

Electrical Supply: 480 Y/277 VAC 3 PH, w/ grounded neutral
80 Amp, 60/50 Hz Connected with 1-1/2” NPT Electrical Drop

Air Supply: 40 CFM dry air at 80-90 psig 1” Feed
(Must be clean dry air) Connected with 3/4” NPT Air Drop

Cooling Water: 30-50 GPH @ 40 psi, 40-50°F
Connected with two (2) 1/2” NPT Water In and Out

Available Options

Flexible & semi-rigid films | Vacuum and MAP | Plug assist-low profile
Single and multi-lane zipper systems | Cutting: Match meta/full punch,
contour, steel rule, guillotine, rotary, rotary score | Shape & Score Cutting
Labeling, top & bottom | Hole punch for pegboard | Trim scrap removal
vacuum canister or wind-up | Printed film registration

Need More Info on the VP125?

VP125 Technical Information

Package Draw Depth: Maximum 4.5”

Standard Web Width: 340mm (13.4”) to 720 (28.4”)

Standard Index: 230mm (9”) to 584mm (23”)

Cycle rates up to 14/minute


Utilities

Electrical Supply: 480 Y/277 VAC 3 PH, w/ grounded neutral 80 Amp, 60/50 Hz Connected with 1-1/2” NPT Electrical Drop

Air Supply: 40 CFM dry air at 80-90 psig 1” Feed (Must be clean dry air) Connected with 3/4” NPT Air Drop

Cooling Water: 30-50 GPH @ 40 psi, 40-50°F Connected with two (2) 1/2” NPT Water In and Out

Available Options

Flexible & semi-rigid films | Vacuum and MAP | Plug assist-low profile | Single and multi-lane zipper systems | Cutting: Match meta/full punch, contour, steel rule, guillotine, rotary, rotary score | Shape & Score Cutting Labeling, top & bottom | Hole punch for pegboard | Trim scrap removal vacuum canister or wind-up | Printed film registration

VP125 Features

VP125 Features

Belt/Clip Film Advance

No stretching as is with standard chain systems • Ultra sanitary – no lubrication required • No costly chain replacement

Acrylic Machine Guarding

Protect critical components • See-through for troubleshooting & sanitation • Ensures safety for workers

Powered Film Drive

Powered mandrel for constant film tension • Mechanical core lock for superior tracking • Optional festoon for long advance lengths

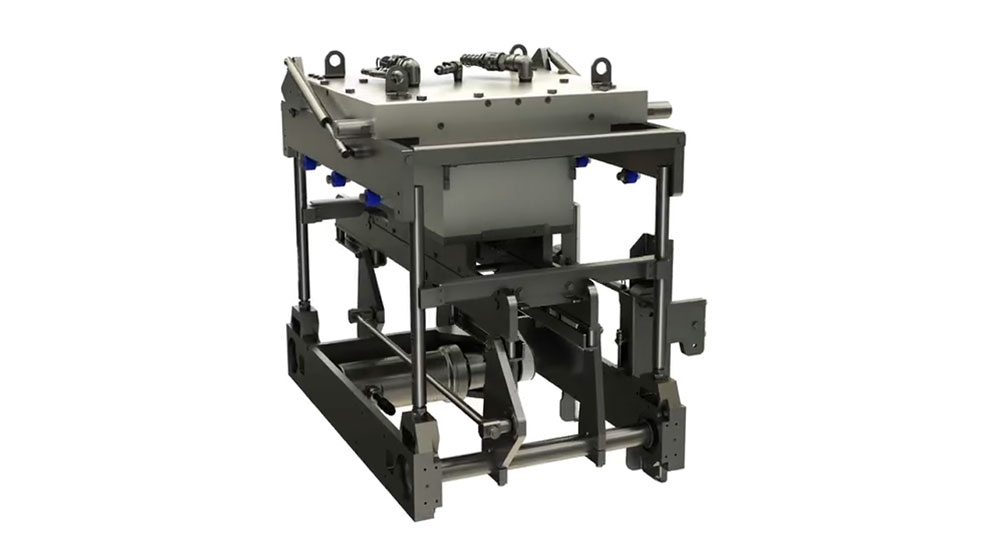

Patented Lift Systems

Single servo motor • Dual belt drive design eliminates gearing • Side extractable tooling

Patented Adhesive Assisted Construction

Weld free - no areas for bacteria, provides surface-to-surface hermetic seal • Modular frame design allows for easy shipping and component addition

Click For More Details on the RapidVisionPak Machine Features:

Packaging Brought to You by the  VP125:

Packaging Brought to You
by the  VP125:

Zipper Packaging

Zipper packaging is a cost-effective option that can be used for a variety of products, both food and non-food applications

Flexible Packaging

Multi-layer construction can keep food safe, keep oxygen out, and keep aroma in, and makes it convenient for consumers to view products.

Semi-Rigid Packaging

Semi-Rigid packaging allows for cavities made for specific products and allows for the convenience of resealability.

Vacuum Skin Packaging

Superior product display • Perfect for Bacon, fresh meats, seafood

RapidPak & VisionPak is Now RapidVisionPak

With our sights on a new vision, RapidPak & VisionPak are now...RapidVisionPak. With an eye on future technologies, and a history of innovation, RapidVisionPak is the name synonoymous with specialized, precise packaging, renown in the food, medical, consumer and other industries.
